Domoscio Docs

To create a link between two Tags because one includes the other, you can create a Tag Edge from one to the other. As such you are creating a DAG (directed acyclic graph) of Tags. For performance purposes, when you create an Edge we will create a bunch of indirect edges to fully describe the graph.

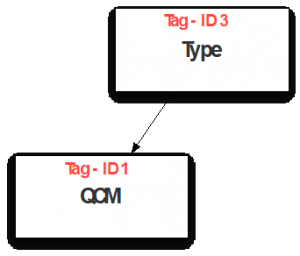

For instance we will work with these two tags:

Object resources

Property	Type	Description
ancestor_id	Integer	The target Tag of the current Edge
descendant_id	Integer	The source Tag of the current Edge
tag_set_id	Integer	The Tag Set the Tag Edge belongs to
direct	Boolean	If the edge is direct or indirect
instance_id	Integer	The instance the knowledge graph belongs to
hops	Integer	The number of different ways between the ancestor and descendant tags
created_at	Timestamp	The creation date of the object
updated_at	Timestamp	The last update date of the object

Create (POST)

Method	POST
URL	/tag_edges

Parameters (*Requiered parameters)

Property	Type	Description
ancestor_id*	Integer	The target Tag of the current Edge
descendant_id*	Integer	The source Tag of the current Edge

Send the request (JSON input example)

{
	ancestor_id: 3,
	descendant_id: 1
}

Get the response (JSON output example)

{
	id: 1,
	ancestor_id: 3,
	descendant_id: 1,
	tag_set_id:1,
	direct : true,
	hops : 1,
	instance_id : 1,
	created_at : 2014-09-17 09:21:03,
	updated_at : 2014-09-17 09:21:03
}

Fetch (GET)

Method	GET
URL	/tag_edges/{tag_edge_id}

If no tag_edge_id is provided it will fetch all Tag Edges for your instance. Be aware that for each Edge you created, we also created a lot of indirect Edges to build the graph. Hence, you will have fetch your “direct” Edges but also the “indirect” Edges.

Get the response (JSON output example)

With ID provided

{
	id : 1,
	ancestor_id : 3,
	descendant_id : 1,
	direct : true,
	count : 1,
	instance_id : 1,
	created_at : 2014-09-17 09:21:03,
	updated_at : 2014-09-17 09:21:03
}
